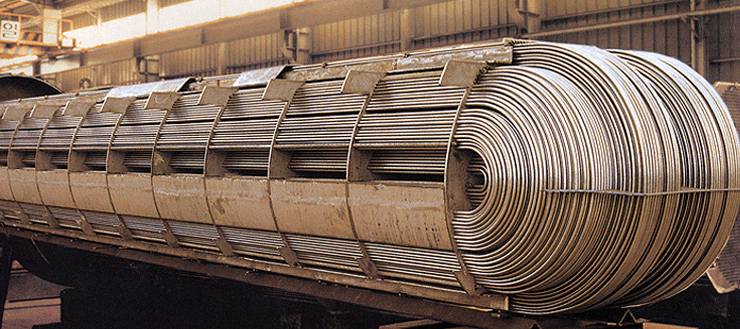

Heat Exchange Tubes From T.I.
-
Specification Chart of Tubes & Pipes |
CHEMICAL COMPOSITION
CS :- Carbon Steel |
Mechanical Properties |
| Tensile Strength |
Yield stress |
Elongation In |
| Specification |
WT |
Type |
C% |
Mn% MAX |
P% MIN
|
S% |
Si% |
Mpa |
Mpa |
50mm MIN Longitudinal |
| ASTM A179 |
M/W |
CS |
0.06-0.18 |
0.27-0.63 |
0.048 |
0.058 |
-- |
-- |
-- |
-- |
| ASTM A192 |
M/W |
CS |
0.06-0.18 |
0.27-0.63 |
0.048 |
0.058 |
0.25 MAX |
-- |
-- |
-- |
| ASTM A210/ A1 |
M/W |
CS |
0.27 MAX |
0.93 MAX |
0.048 |
0.058 |
0.10 MAX |
312 MAX |
255 MIN |
30 |
| DIN/17175/ST35.8 |
A/W |
CS |
0.17 MAX |
0.40 MIN |
0.040 |
0.040 |
0.35 MAX |
340-441 |
235 MIN |
25 |
| DIN/17175/ST45.8 |
A/W |
CS |
0.22 MAX |
0.45 MIN |
0.040 |
0.040 |
0.10-0.35 |
441-540 |
255 MIN |
21 |
| IS 3074 CDS1 |
A/W |
CS |
0.20 MAX |
0.30-0.60 |
0.050 |
0.050 |
-- |
432 |
373 |
-- |
| IS 3074 CDS2 |
A/W |
CS |
0.10-0.18 |
0.40-0.80 |
0.050 |
0.050 |
-- |
432 |
373 |
-- |
| IS 3074 CDS3 |
A/W |
CS |
0.10-0.18 |
0.40-0.80 |
0.050 |
0.050 |
-- |
432 |
373 |
-- |
| IS 3074 CDS4 |
A/W |
CS |
0.10-0.18 |
0.60-0.90 |
0.050 |
0.050 |
-- |
569 |
461 |
-- |
| IS 3074 CDS5 |
A/W |
CS |
0.10-0.18 |
0.60-0.90 |
0.050 |
0.050 |
-- |
687 |
589 |
-- |
| DIN 2391 PART1 5T-35 |
-- |
CS |
0.17 |
>0.04 |
0.050 |
0.050 |
0.35 |
432 |
- |
5% |
| DIN 2391 PART1 5T-45 |
-- |
CS |
0.21 |
>0.04 |
0.050 |
0.050 |
0.35 |
540 |
-- |
5% |
| BS 6323 PART 4 |
-- |
CS |
0.25 MAX |
1.25 MAX |
0.050 |
0.050 |
0.35 |
520 |
415 |
5% |
Dimension Table:
| Nominal Size in. |
Nominal Out Dia mm |
Wall Thickness mm |
Class/ Sch number |
Weight Kg/m |
| 1/4 |
13.7 |
2.4
2.2
3.0 |
XS - 80
Std - 40
XS - 80 |
0.47
0.63
0.80 |
| 3/8 |
17.1 |
2.3
3.2 |
Std - 40
XS - 80 |
0.85
1.10 |
| 1/2 |
21.3 |
2.8
3.8 |
Std - 40
XS - 80 |
1.26
2.19 |
| 1 |
33.4 |
3.4 |
Std - 40 |
2.00 |
| 1 1/4 |
42.2 |
3.6 |
Std - 40 |
3.38 |
|
